Detector
Detector	Sony ILX511B linear silicon CCD-array
Detector range	200-1100 nm
Pixels	2048 pixels
Pixel size	14 μm x 200 μm
Pixel well depth	~62,500 electrons
Sensitivity	75 photons/count at 400 nm; 41 photons/count at 600 nm
Optical Bench
Design	f/4, Symmetrical crossed Czerny-Turner
Focal length	101.6 mm input and output
Entrance aperture	5 μm wide slits

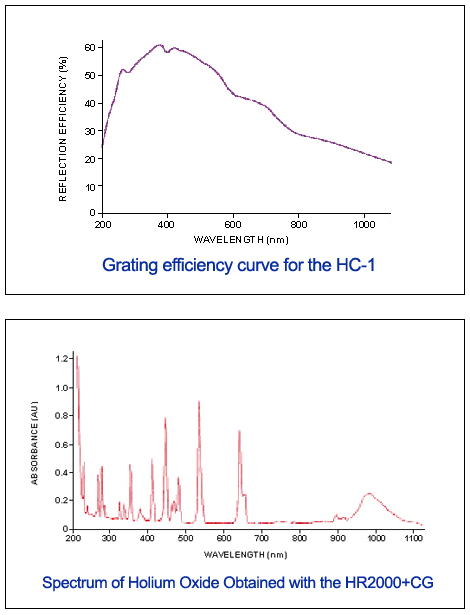

Grating options	HC-1, 300 lines per mm grating
HC-1 grating option	provides 200-1100 nm range
OFLV filter options	OFLV 200-1100 nm
UV enhanced window	Yes, UV2
Fiber optic connector	SMA 905 to 0.22 numerical aperture single-strand optical fiber
Electronics
Power consumption	220 mA @ 5 VDC
Inputs/outputs	10 onboard digital user-programmable GPIOs
Analog channels	One 13-bit analog input and one 9-bit analog output
Trigger modes	4 modes
Strobe functions	Yes
Connector	30-pin connector
