UHP-LED
Ultra High Power LED Light Source

제조사 Prizmatix Ltd
원산지 이스라엘



UHP-LED 제품특징

  • Built-in adjustable aspheric collimator 적용
  • 형광현미경의 여기 광원(epi-fluorescence port에 연결가능) 및 microplate/petri dish 등 다양한 타겟 시료에 direct illumination으로 사용 가능
  • 365, 385, 405, 450, 460, 520, 525, 545, 595, 625, 630 ,730 and White ( 405nm Max. power: 5.7W)
UHP-T-LED-White-High-CRI
특징 Ultra High Power LED Light Source for Fluorescence Microscopy
Wavelength See spectrum
Collimated optical power output >2.3 W
Power from 3mm core LightGuide and Collimator > 1 W
Collimated Flux output 700 lumen
Chromacity CIEx / CIEy 0.323 / 0.333
Color Temperature 5965 K
CRI Ra 96.5

Product P/N Color Peak
[nm]		 FWHM
[nm]		 Power
Col.[mW]		 Power
LLG5[mW]		 Recommended for
UHP-T-405-DIViolet404145700 Mic, Flu, CeC, PeD, Opt, LLG
UHP-T-460-DI Royal Blue 456244300 Mic, Flu, CeC, PeD, Opt, LLG
UHP-T-520-DIGreen525431800 Mic, Flu, CeC, PeD, Opt, LLG
UHP-T-625-DIRed627191800 Mic, Flu, CeC, PeD, Opt, LLG
UHP-T-HCRI-DIWhite 2300 Mic, Flu, CeC, PeD, Opt, LLG
UHP-T-W45-DIWhite 3700 Mic, Flu, CeC, PeD, Opt, LLG
UHP-T-W65-DIWhite 3200 Mic, Flu, CeC, PeD, Opt, LLG
UHP-T-WCS-DIWhite 4400 Mic, Flu, CeC, PeD, Opt, LLG
UHP-T-WDS-DIWhite 4800 Mic, Flu, CeC, PeD, Opt, LLG
UHP-T-WSS-DIWhite 4700 Mic, Flu, CeC, PeD, Opt, LLG
UHP-T-405-EPViolet401193500 Mic, Flu, Opt, MW, FC, LLG
UHP-T-450-EPRoyal Blue450252400 Mic, Flu, Opt, MW, FC, LLG
UHP-T-520-EPGreen520371000 Mic, Flu, Opt, MW, FC, LLG
UHP-T-625-EPRed62424850 Mic, Flu, Opt, MW, FC, LLG
UHP-T-630-EPRed637261000 Mic, Flu, Opt, MW, FC, LLG
UHP-T-650-EPDeep Red656261000 Mic, Flu, Opt, MW, FC, LLG

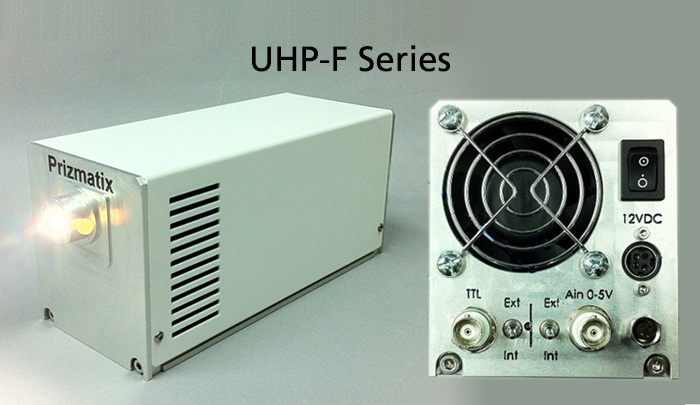

UHP-F-365UV36916 3300Mic, Flu, LLG, HHM, CeC, Inc
UHP-F-385UV38513 3800Mic, Flu, LLG, HHM, CeC, Inc
UHP-F-405Violet40414 4500Mic, Flu, LLG, HHM, CeC, Inc
UHP-F-455Royal Blue45325 4300Mic, Flu, LLG, HHM, CeC, Inc
UHP-F-470Blue46625 5000Mic, Flu, LLG, HHM, CeC, Inc
UHP-F-525Green52542 1300Mic, Flu, LLG, HHM, CeC, Inc
UHP-F-545Green54598 3700Mic, Flu, LLG, HHM, CeC, Inc
UHP-F-625Red62620 2200
UHP-F-630Red62922 2000Mic, Flu, LLG, HHM, CeC, Inc
UHP-F-HCRIWhite0 2000Mic, Flu, LLG, HHM, CeC, Inc
UHP-F-W57White0 4000Mic, Flu, LLG, HHM, CeC, Inc
UHP-F-W65White0 3500Mic, Flu, LLG, HHM, CeC, Inc
UHP-T-470-LABlue466274700 Mic, Flu, Opt, MW, LLG
UHP-T-505-LACyan506371000 Mic, Flu, Opt, MW, LLG
UHP-T-595-LAYellow59817720 Mic, Flu, Opt, MW, LLG
UHP-T-730-LANIR73435800 Mic, Flu, Opt, MW, LLG
UHP-T-365-MPUV3691538001700MiP, Flu, Opt, CeC
UHP-T-385-MPUV3901650003000MiP, Flu, Opt, CeC
UHP-T-455-MPRoyal Blue4532150002800MiP, Flu, Opt, CeC
UHP-T-520-MPGreen525431500850MiP, Flu, Opt, CeC
UHP-T-545-MPGreen54410053002800MiP, Flu, Opt, CeC
UHP-T-630-MPRed6331920001100MiP, Flu, Opt, CeC
UHP-T-450-SRRoyal Blue450251800 Mic,Flu,Opt,MW,FC,LLG,HHm
UHP-T-545-SRGreen5441001700 Mic,Flu,Opt,MW,FC,LLG,HHm
UHP-T-595-SRYellow59677260 Mic,Flu,Opt,MW,FC,LLG,HHm
UHP-T-620-SRRed62621760 Mic,Flu,Opt,MW,FC,LLG,HHm
UHP-T-630-SRRed63223540 Mic,Flu,Opt,MW,FC,LLG,HHm
UHP-Mic-LED-405Violet401193500 Mic, Flu, Opt, MW, FC, LLG
UHP-Mic-LED-450Royal Blue450252300 Mic, Flu, Opt, MW, FC, LLG
UHP-Mic-LED-520Green520371000 Mic, Flu, Opt, MW, FC, LLG
UHP-Mic-LED-625Red62424850 Mic, Flu, Opt, MW, FC, LLG
UHP-Mic-LED-650Deep Red656261000 Mic, Flu, Opt, MW, FC, LLG
