Specifications
Fiber type	Step-index multimode
Fiber core	Pure silica core
Fiber cladding	Fluorine-doped silica cladding
Fiber buffer/coating	Polyimide coating

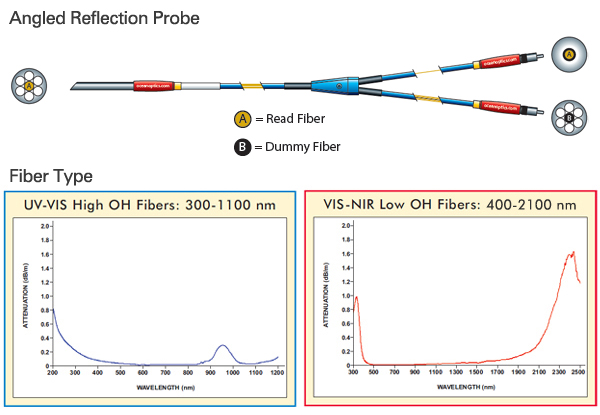

Fiber bundle	6 illumination fibers around 1 read fiber
Operating temp.	-20 °C to 80 °C
Numerical aperture	0.22 ± 0.02 (yields an acceptance angle of 24.8° in air)
Probe ferrule	Stainless steel except where noted
Probe connector(s)	Premium-grade SMA 905 Connectors for QR-series probes, Laboratory-grade SMA 905 Connectors for R-series probes
Breakout	Midway of assembly at 1 meter
Total probe length	2 meters long for fiber assembly, 76.2 mm long for probe ferrule = 2.076 meters total length; custom lengths available

Item Code	Wavelength Range	Core Diameter	Fiber Jacketing	Probe Ferrule	LTBR*	STBR**
QR200-ANGLE-U	300-1100 nm	200 μm ± 4 μm	silicone monocoil	6.35 mm OD	8 cm	4 cm
QR200-ANGLE-V	400-2100 nm	200 μm ± 4 μm	silicone monocoil	6.35 mm OD	8 cm	4 cm
QR400-ANGLE-V	300-1100 nm	400 μm ± 8 μm	silicone monocoil	6.35 mm OD	16 cm	8 cm
QR400-ANGLE-V	400-2100 nm	400 μm ± 8 μm	silicone monocoil	6.35 mm OD	16 cm	8 cm
R200-ANGLE-UV	300-1100 nm	200 μm ± 4 μm	zip tube blue PVDF	6.35 mm OD	8 cm	4 cm
R200-ANGLE-VIS	400-2100 nm	200 μm ± 4 μm	zip tube blue PVDF	6.35 mm OD	8 cm	4 cm
R400-ANGLE-UV	300-1100 nm	400 μm ± 8 μm	zip tube blue PVDF	6.35 mm OD	16 cm	8 cm
R400-ANGLE-VIS	400-2100 nm	400 μm ± 8 μm	zip tube blue PVDF	6.35 mm OD	16 cm	8 cm
* Long Term Bend Radius, the bend radius allowed long term before damaging the fiber ** Short Term Bend Radius, the momentary bend radius allowed before damaging the fiber
