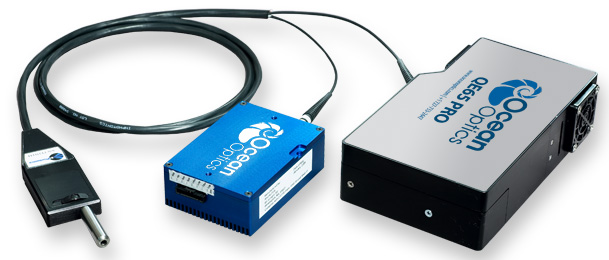

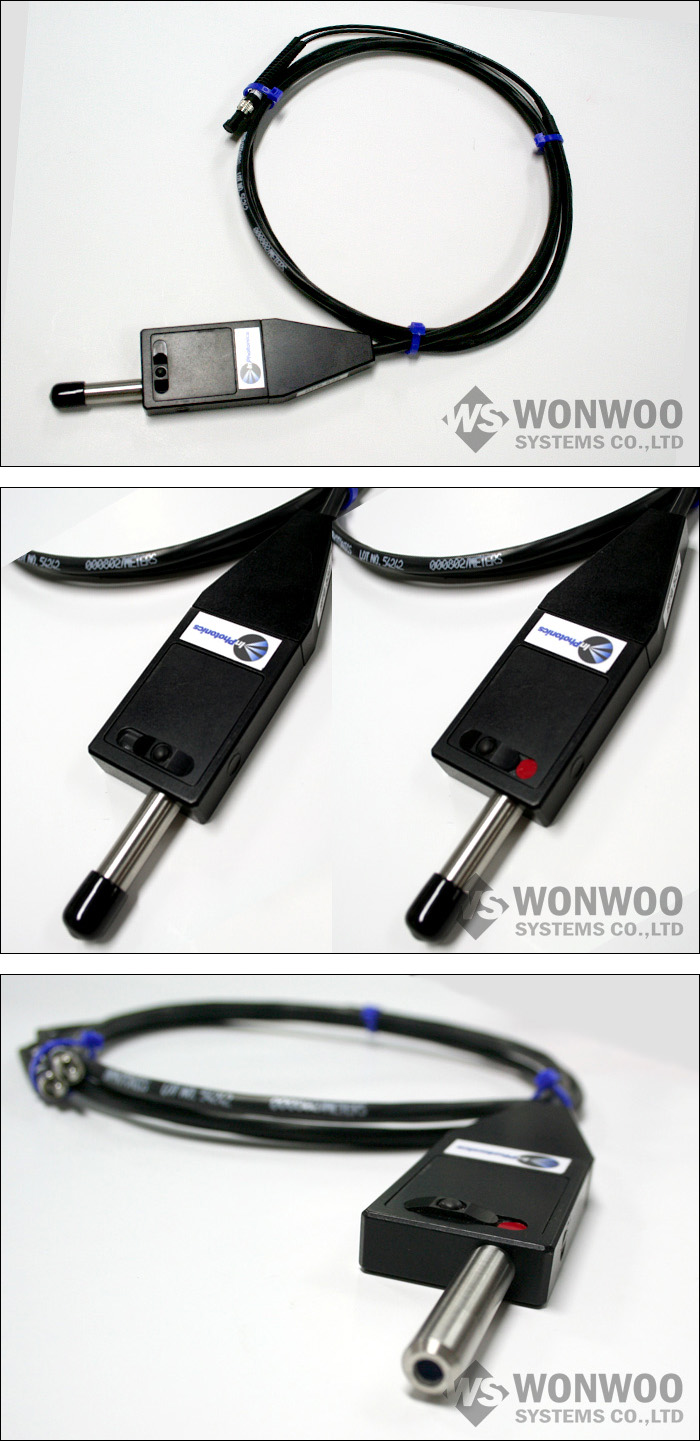

QE65PRO-Raman
Scientific-grade Spectrometer for Raman

사이즈 182 mm x 110 mm x 47 mm
무   게 1.18 kg (without power supply)
제조사 Ocean Optics Inc
원산지 미국





Configuration
Spectrometer QE65-Pro-Raman
Grating H6
Filter DET-QE
Slit INTSMA-050
Mirrors AU-UPG QE65-PRO Gold Mirrors
Configuration
Detector Hamamatsu S7031-1006
Detector range 200-1100 nm
Pixels 1024 x 58 (1044 x 64 total pixels)
Pixel size 24.576 μm2
Pixel well depth

1000 Ke-

Sensitivity ~0.065 counts / e-
Quantum efficiency 90% peak; 65% at 250 nm
Optical Bench
Design f/4, Symmetrical crossed Czerny-Turner
Focal length 101.6 mm input and output
Entrance aperture 50 μm wide slit
HC6 grating Provides 123-170 nm range
Detector collection lens option None
Collimating and focusing mirrors Standard only
UV enhanced window No
Fiber optic connector SMA 905 to 0.22 numerical aperture single-strand optical fiber
Spectroscopic
Wavelength range 780 - 1100 nm (Grating dependent)
Optical resolution ~6- 19cm-1 (Slit dependant)
Signal-to-noise ratio 1000:1 (at full signal)
A/D resolution 16 bit
Dark noise 3 RMS counts
Dynamic range 7.5 x 109 (system), 25000:1 for a single acquisition
Integration time 8 ms to 15 minutes
Stray light <0.08% at 600 nm; 0.4% at 435 nm
Corrected linearity 99.8%
