ecoVis
미니 텅스턴할로겐 광원

사이즈 95mm x 50mm (LW)
무   게 265 g
제조사 Ocean Optics Inc
원산지 미국


  • Compact VIS-NIR source with response from 400-2500 nm
  • Fiber ports positioned for absorbance or fluorescence measurements
  • Easy-access replaceable bulb assembly
  • Specially designed housing to dissipate excess heat that can affect performance
Specifications
Dimensions 95 mm x 50 mm
Weight 265 g

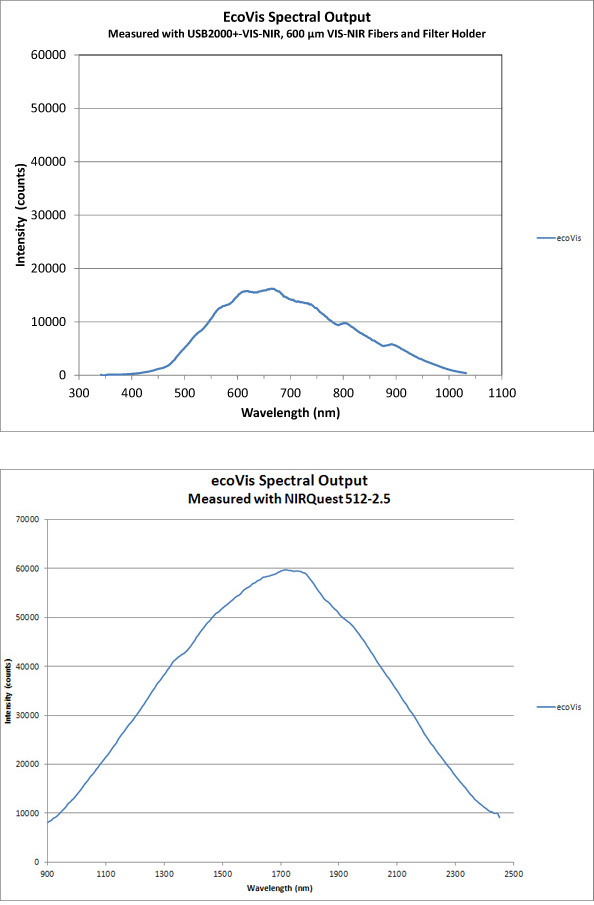

Wavelength range 400-2500 nm
Time to stabilize ~10 minutes
Stability (standard deviation for k=1) 0.06% (after 30-minute warm-up)
Drift <0.5% per hour (after 1 hr. warm-up)
Bulb lifetime 2,000 hours
Bulb temperature 2400 K
Fiber optic connector SMA 905
Power supply Universal multi-plug adapter
Power supply input 100-240V/50-60 Hz/150 mA
Power supply output 3.5 VDC/1100 mA
Temperature (housing) 42 °C @ 25 °C environmental
Temperature (operating) 5 °C-35 °C
Humidity 5-95% @ 40 °C
Cuvette holder pathlength 10 mm
Cuvette holder Z dimension 15 mm
