DH2000-DUV
Deuterium Tungsten Halogen Light Sources

사이즈 150 mm x 135 mm x 319 mm
무   게 3.5 kg
제조사 Ocean Optics Inc
원산지 미국


Options and Accessories
Integrated shutters are also available with the DH-2000 and can be driven
either by a switch or by a TTL signal.

Adjustable Power
All versions of the DH-2000 have a potentiometer on the back of the light source to balance
the light level between the deuterium and tungsten halogen light sources.

Optical Fibers
We recommend using our solarization-resistant optical fibers with all versions of the DH-2000.

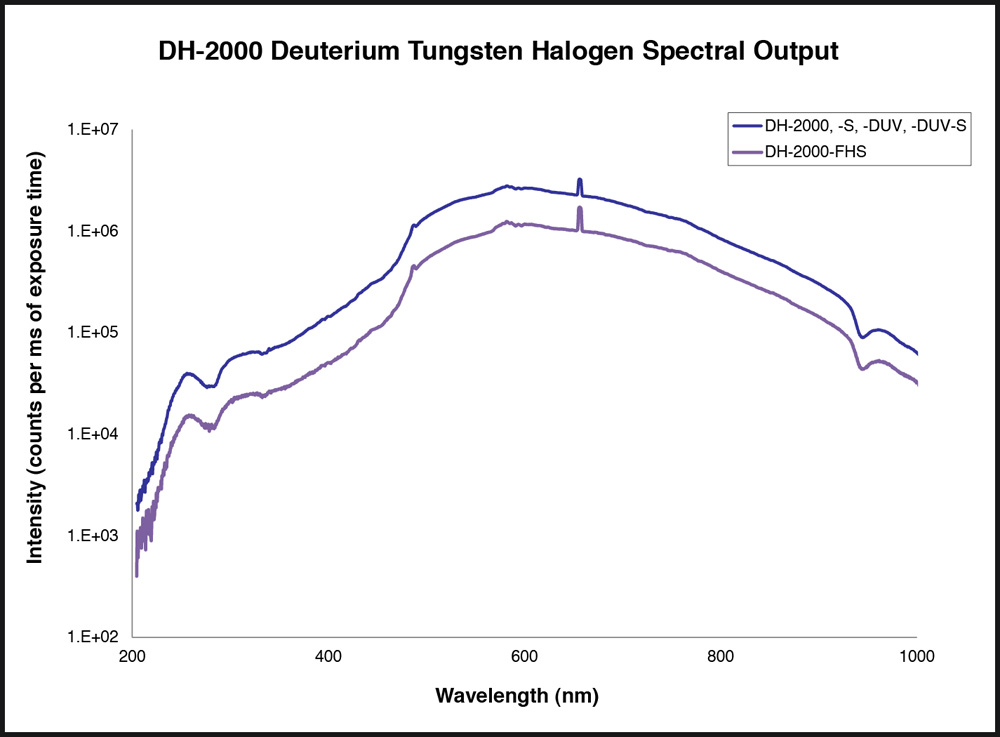

Measured with HR2000+ Spectrometer with 25 μm Slit and 400 μm Optical Fiber
Specifications
Source Deep-UV Deuterium & Tungsten Halogen
Wavelength range 190-2500 nm
Nominal bulb power 26 W (deuterium) 20 W (tungsten halogen)
Warm-up time 25 minutes
Source lifetime 1,000 hours
Stability of light source output ≤0.1%/hour @ 254 nm (deuterium)
≤0.1%/hour @ 700 nm (tungsten halogen)
Shutter DH2000-S-DUV & DH2000-S-DUV-TTL only
Remote shutter control: DH2000-S-DUV-TTL only
Integrated filter holder DH2000-FHS-DUV only
Power requirements 85-264 V, 50/60 Hz
