DH-2000-BAL
Balanced Deuterium Tungsten Halogen Source

»çÀÌÁî 150 mm x 135 mm x 319 mm
¹«   °Ô 3.8 kg
Á¦Á¶»ç Ocean Insight
¿ø»êÁö ¹Ì±¹


  • Eliminates D-alpha line in deuterium source

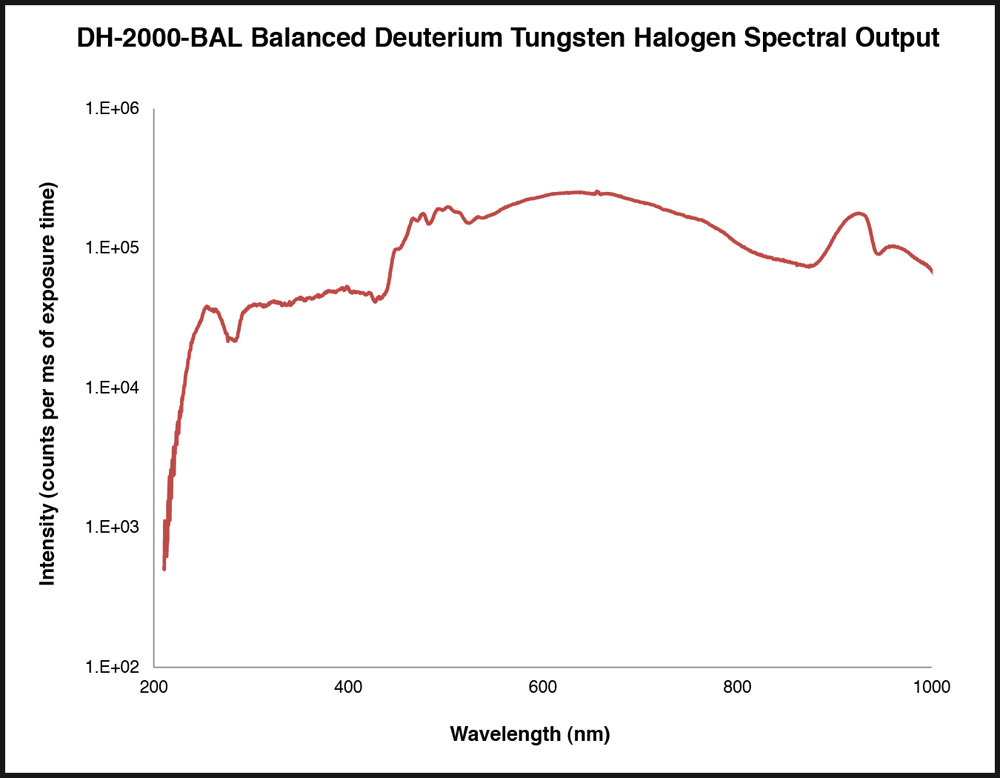

  • Stable output 215-2000 nm
  • Innovative filtering technology produces smooth spectrum across entire range

Specifications
ÆÄÀå¹üÀ§ 215-400 nm (deuterium bulb)
360-2000 nm (tungsten halogen bulb)
Warm-up time 40 minutes (deuterium);
20 minutes (tungsten halogen)
Current voltage stability <5 x 10-6 peak-to-peak (0.1-10.0 Hz)
Lamp lifetime 1,000 hours
Humidity 5-95% without condensation at 40 ¡ÆC
