5VDC power supply 및 Rechargeable Lithiumion Battery를 사용한 전원 공급으로 사용편의성 높임
Wavelength Range by Calibration Source

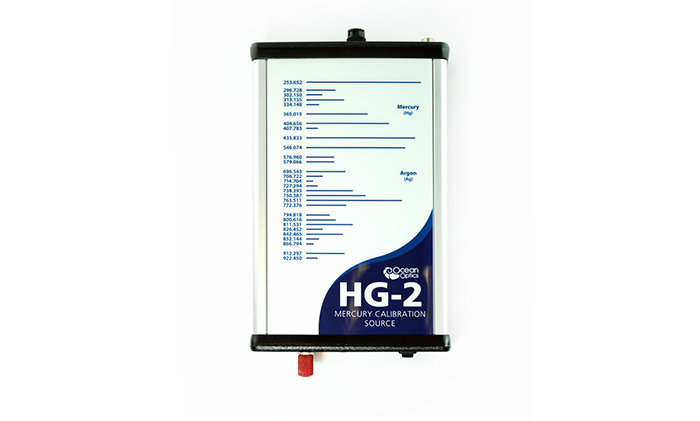

HG-2
253-1700 nm

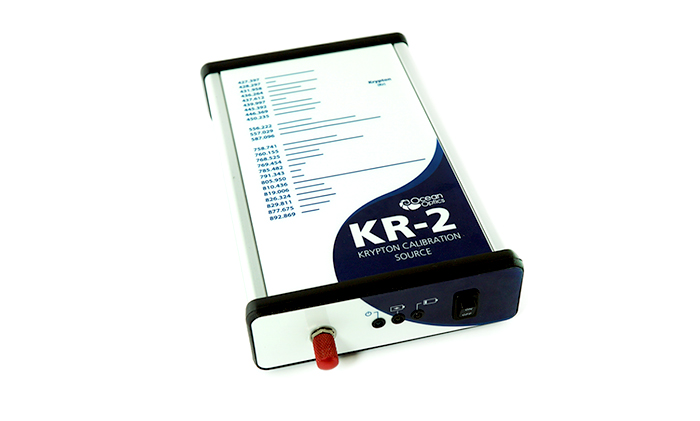

KR-2
427-893 nm
NE-2
540-754 nm
AR-2
696-1704 mm

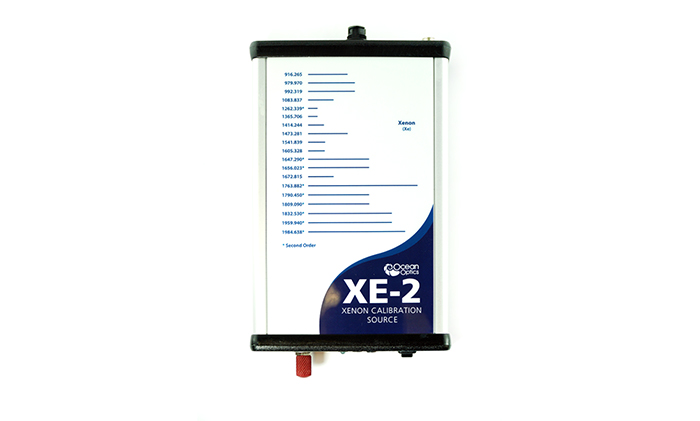

XE-2
916-1984 nm
Specifications
Dimensions:
16.7 x 10.6 x 3.4 cm (without feet)
Weight:
180 g
Power consumption:
2A (maximum) at 5 VDC when battery is charging
Power requirements:
5 VDC power supply; rechargeable, embedded lithium ion battery
Bulb life:
3,500 hours (typical)
Aperture:
3 mm
Amplitude stabilization:
~1 minute
Optical connector:
SMA 905
