FIA-Z-SMA-PEEK-LENSED

제조사 Ocean Optics Inc
원산지 미국


  • 10 mm flow cell that includes two collimating lenses and special SMA adapters

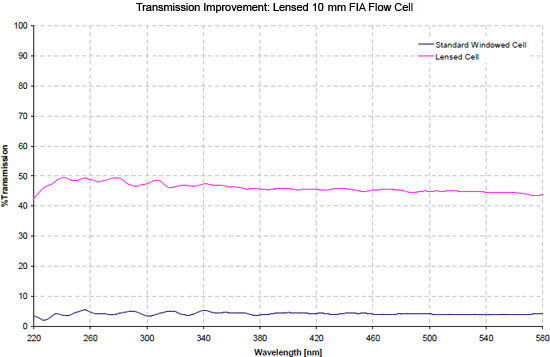

  • Increase the UV and VIS throughput of the flow cell by up to 10X
Specifications
Cell type Z cell
Cell material PEEK polymer*
Pathlength 10 mm
Lens material UV-grade fused silica
Wavelength range 200-900 nm
Total internal volume 60 μL
Cell transmission efficiency ~40% from 220-580 nm
FIA connectors 1/4-28 fittings
Tubing 1/16" Teflon, ~3 m
Fiber connectors SMA 905
* PEEK has good chemical resistance to a wide range of organic and inorganic materials. If you require a different cell material, be sure to contact an Ocean Optics Applications Scientist about custom cell materials -- available at an additional cost.
