HOME > 제품소개 > 광학 악세서리 > Flow cell
제조사 Ocean Optics Inc
원산지 미국
  • Excellent Reproducibility. Ideal for automated fluid sampling systems, eliminate measurement errors that can occur with manual handling of solutions.
  • Small Sampling Volumes. Perform analyses with as little as 8 μL of the sample solution.
  • Applications Flexibility. Couple flow cells to our spectrometers to monitor wastewater, chemical or biological processes, and immunoassays.

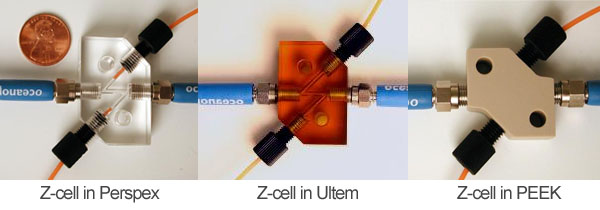

Cell material Ultem, PEEK, Plexiglas, Teflon or Stainless Steel
Window material UV-grade fused silica (FIA-Z-SMA and FIA-Z-μol)
Window thickness 1 mm (FIA-Z-SMA and FIA-Z-μol)
Wavelength range 210-2000 nm ((FIA-Z-SMA and FIA-Z-μol)
190-2000 nm (FIA-Z-CELL)
FIA connectors 1/4-28
Tubing 1/16" Teflon, ~3 m
Fiber connectors SMA 905 (FIA-Z-SMA and FIA-Z-μol), 1.58-mm SS ferrules (FIA-Z-CELL)
