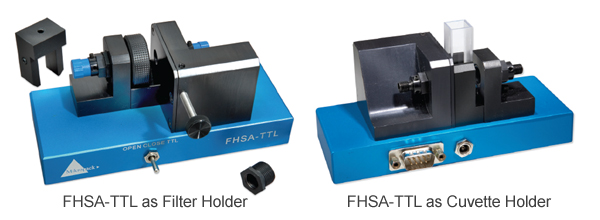

FHSA-series

사이즈 140 mm x 50 mm x 50 mm
무   게 490 g
제조사 Ocean Optics Inc
원산지 미국


Specifications
Dimensions 140 mm x 50 mm x 50 mm
Weight 490 g
Power consumption 100 mA @ 12 VDC
Filter size (maximum) Any sample up to 7 mm thick
Wavelength range 200 nm-2000 nm
Optical fibers required Yes
Spectrometer All
Cuvette dimensions 10 mm x 10 mm
Shutter frequency 5 Hz/60 dB (maximum)
Shutter response time 7 μsec
