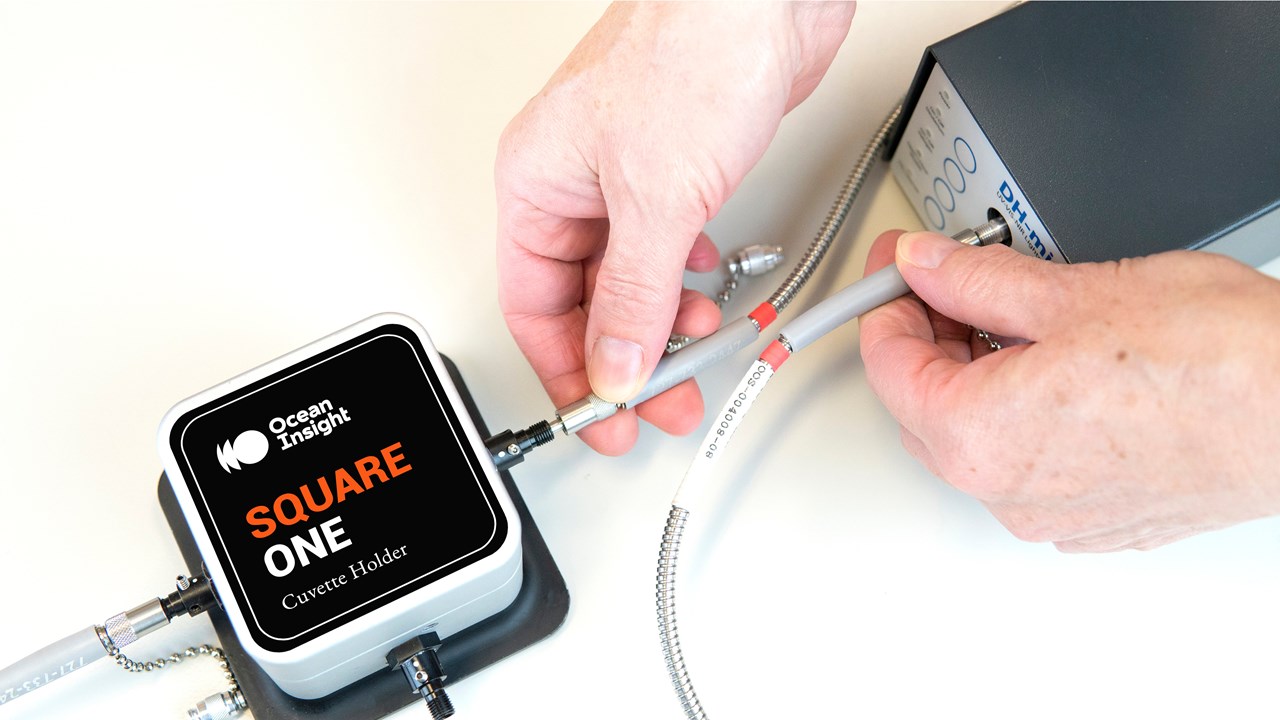

SQUARE ONE
General Purpose Cuvette Holders

사이즈 111 mm x 90 mm x 74 mm
무   게 618 g
제조사 Ocean Optics Inc
원산지 미국



SQUARE ONE 제품특징

  • Versatile design - configure holder for absorbance or fluorescence measurements
  • Connector - fiber optic coupling with SMA 905 connectors
  • Focusing - collimating lenses with adjustable focal length




Absorbance Repeatability with the Square One Cuvette Holder



Technical specifications
Collimating Lenses One of 74-UV fused silica lens (200-2000 nm),
Three 74-UV fused silica lenses (200-2000 nm),
Two 74-UV f/2 fused silica lenses (200-2000 nm)
Filter Slot Specification Accepts filters up to 6.35 mm (1/4”) thickness, No, Two slots in total. Each slot accepts one 12.5 mm and 25 mm diameter filters.
Pathlength 1 cm, 1 cm to 10 cm (adjustable), 10 cm, Up to 150 mm thick (solids) Up to 150 mm pathlength (cuvettes)
Z Dimension Specification 15 mm
Base Material Black anodized aluminum
Base Measurement Guide Scored at 1 mm segments; 150 mm total length
Connector SMA 905
Dimensions 111 mm x 90 mm x 74 mm, 150 mm x 50 mm x 50 mm, 200 mm x 67 mm x 70 mm, 200 x 67 x 157, 57 mm x 61 mm x 29 mm overall, 58 mm x 140 mm x 38 mm, 97 mm x 147 mm x 40 mm
Integrated Light Source No
Light Source Mount Diameter 9.52 mm (3/8”)
Mounting Bars Material Black anodized aluminum
Mounting Bars Positioning Four 3/8-24 threaded holes
Mounting Bars Threading Accepts lenses with 3/8-24 threadsUses M6 setscrews for adjusting the bars
Reflection Mirrors Two (2) of UV-enhanced, aluminum-coated
Water Input Fittings for Temperature Regulation 3.175 mm (1/8”) NPT, No
Weight 1 kg, 230 g, 490 g, 540 g, 618 g, 726 g, 80 g
