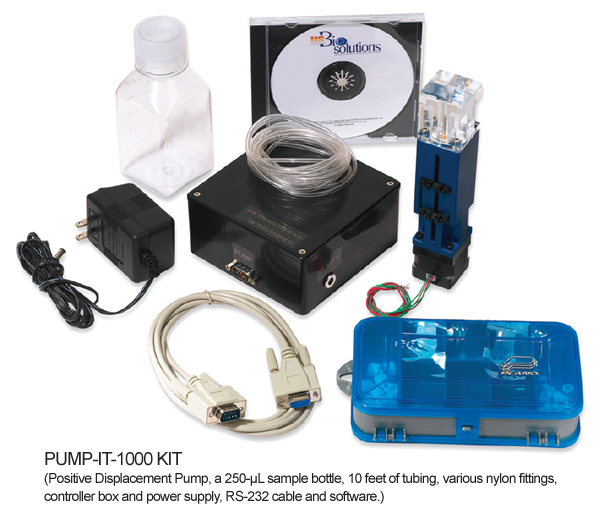

PUMP-IT

제조사 Ocean Optics Inc
원산지 미국


  • Applications: blood chemistry, blood analysis, particle sizing, in vitro diagnostics and biopharmaceutical analysis
  • PC/Software-controlled RS232
  • Long-life Design : Piston in the pump will last about 1-2 million cycles before it shows evidence of wear
Specifications
Full scale volume 250 μL
Volume per full step 0.028 μL
Throughput >60% (based on 400 μm optical fiber
Actuator 5 VDC, 0.49 amp/phase, 10.2 ohms/phase, 9.6 mHz/phase
Repeatability <0.5%
Precision <0.3%
Pump head Acrylic (custom options include polycarbonate and PEEK)
Pump piston PEEK (custom options include stainless steel, ceramic, glass)
Pump body Aluminum (custom options include acrylic and stainless steel)
Dimensions Pump -- 3.5 cm x 3.50 cm x 16.94 cm
Controller -- 11.93 cm x 11.93 cm x 6.35 cm
Controller Unipolar/Bipolar dual stepper motor control PCB, 7.5 VAC, 1A
Baud rate 2400 or 9600 baud serial connection
AC adapter 7.5 V AC, 1A
Tubing 10 feet of Tygon tubing
Standard nylon fittings 10 female Luer fittings, 1/4 hex to 10-32 thread
10 male Luer fittings, 1/4 hext to 10-32 thread
10 Luer plugs and 10 caps
10 1/6" ID barbed fittings with 10-32 thread
10 1/6" ID barbed tee fittings
10 1/16" ID elbow fittings
