	ISP-I
	Irradiance/Emission Integrating Sphere


	제조사	Ocean Optics Inc
	원산지	미국

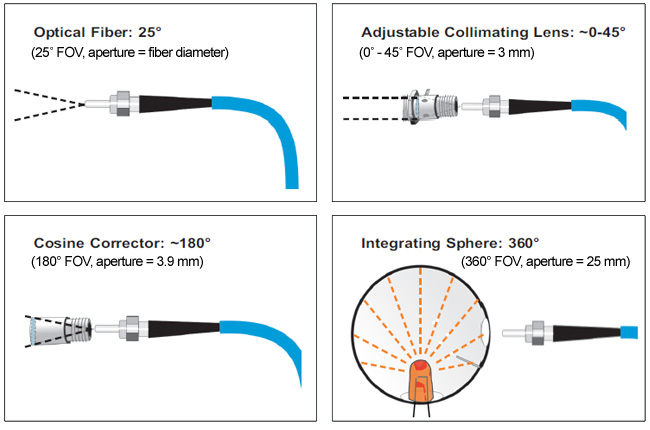

Spectroradiometric Analysis. Couple spheres to spectrometers to analyze LED, laser and light source output
Flexible. Spheres are available in diameters of 30 mm, 50 mm and 80 mm
LED-ready. Spheres accommodate a variety of LEDs
Direct-attach option. Spheres can couple directly to a spectrometer

Specifications
Dimensions	ISP-30-6-I: 59 mm diameter, 58 mm height ISP-50-8-I: 80 mm diameter, 78 mm height ISP-80-8-I: 107 mm diameter, 117 mm height
Weight	330 g (ISP-30); 730 g (ISP-50); 1,650 g (ISP-80)
Spectral range	200-2500 nm
Sphere diameter	30 mm, 50 mm or 80 mm
Sample port diameter	6 mm (ISP-30); 8 mm (ISP-50 and ISP-80)
Sphere coating	Proprietary PTFE-based diffusing material
Reflectivity	>98% (400-1500 nm); >95% (250-2500 nm)
LED adapter	For 3-mm, 5-mm or 8-mm LEDs

Item Code	Description	Sample Port
ISP-30-6-I	Integrating sphere, 59 mm diameter, 58 mm high	6 mm
ISP-50-8-I	Integrating sphere, 80 mm diameter, 78 mm high	8 mm
ISP-80-8-I	Integrating sphere, 107 mm diameter, 117 mm high	8 mm
ISP-LED-ADP	Holds in place 3, 5 or 8 mm LED for reproducibility; for use with ISP-50-8-1	N/A
ISP-50-I-USB	ISP-50-8-I with connector for directly attaching to a spectrometer	8 mm
USB-ISP-80	ISP-80-8-I with connector for directly attaching to a spectrometer	8 mm
ISP-PORT-1	Custom sample port machining of 8, 10, or 12 mm diameter	8, 10 or 12 mm
ISP-PORT-2	Custom sample port machining of 14,16 or 20 mm diameter	14, 16 or 20 mm
