X93+ LP-99 Detector

사이즈 120 mm x 65 mm x 22 mm
무   게 150 g
제조사 Gigahertz-Optik GmbH
원산지 독일


The X93 Optometer can be combined with the LP-9910 Sphere Detector or the LP-9901 Flat Field detector.

  • Hand-held Single Channel Laser Power Meter
  • Low Profile Detector - 100 mW max.
  • Compact Integrating Sphere Detector - 500 mW max.
  • 7 mm dia. Aperture Laser Stray-light Detector
  • Wavelength Range from 400 to 1100 nm
  • Simple Wavelength Selection
  • CW Snapshot Hold Function
  • Peak Hold Function
  • Economical Price
  • Battery Operation
  • RS232 Interface

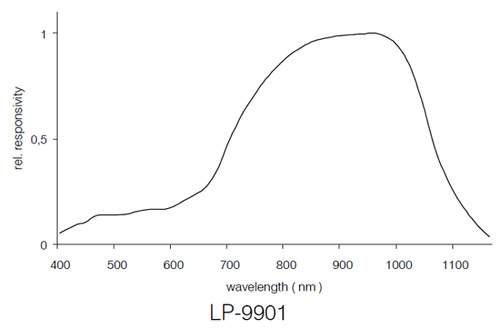

X93 with Detector Head LP-9901-4
typ. max. value 30 mW at 900 nm, 100 mW at 633 nm
typ. max. resolution 0.00002 mW
wavelength range 400 -1100 nm, calibrated in 10 nm increments
measurement aperture 7 mm diameter
dimensions 8 mm height, 37 mm diameter, handle length 100 mm

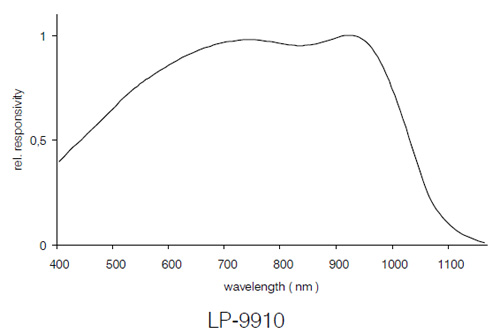

X93 with Detector Head LP-9910-4
typ. max. value 100 mW
typ. max. resolution 0.00001 mW
wavelength range 400 -1100 nm, calibrated in 10 nm increments and additional laser wavelength
measurement aperture 12.7 mm diameter
dimensions 50 mm sphere diameter
