반사 측정구성
제조사 Ocean Optics Inc
원산지 미국
Color measurement involves determining the reflection spectrum of a sample and applying it to a standard illuminant. The amount oflight energy the sample reflects is manipulated and reduced to tristimulus values X, Y and Z. These values correspond to the physiological response of the three types of color receptors in the human eye. X, Y and Z values are combined into uniform colorspace values such as L*, a* and b*.

A USB4000 with a 25 μm slit and Grating #2 (350-1000 nm) works well for color analysis. For those using an integrating sphere as the sampling optic, we recommend an L4 Detector Collection Lens to improve sensitivity.

Sampling Optics

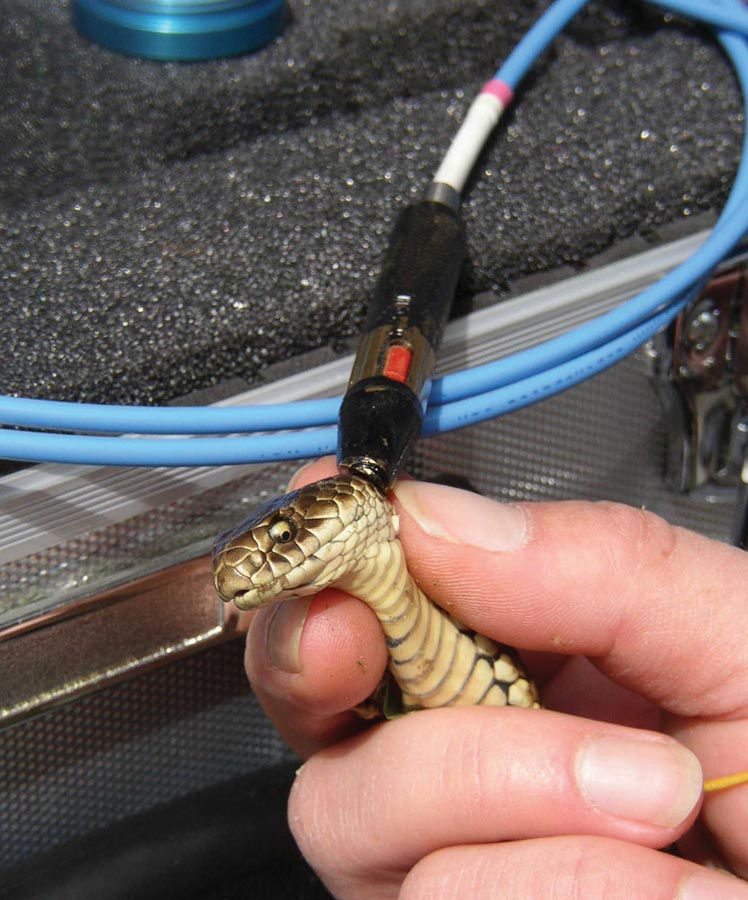

When taking reflective-color measurements, your data depends on sampling geometry. The QR400-7-VIS-NIR Reflection Probe provides illumination and detection from the same direction. If you use the probe at a 45°, it measures diffuse reflection. If you use the probe at a 90°, it measures specular reflection. The distance from the probe to the surface determines the sample size. An alternative is the ISP-REF Integrating Sphere, which provides 180° illumination and detection from flat surfaces for measuring specular and diffuse reflection.

Reflectivity is measured against a reference standard such as the WS-1 Diffuse Reflectance Standard. SpectraSuite Spectroscopy Operating Software calculates a variety of color-space values from the reflection spectra.

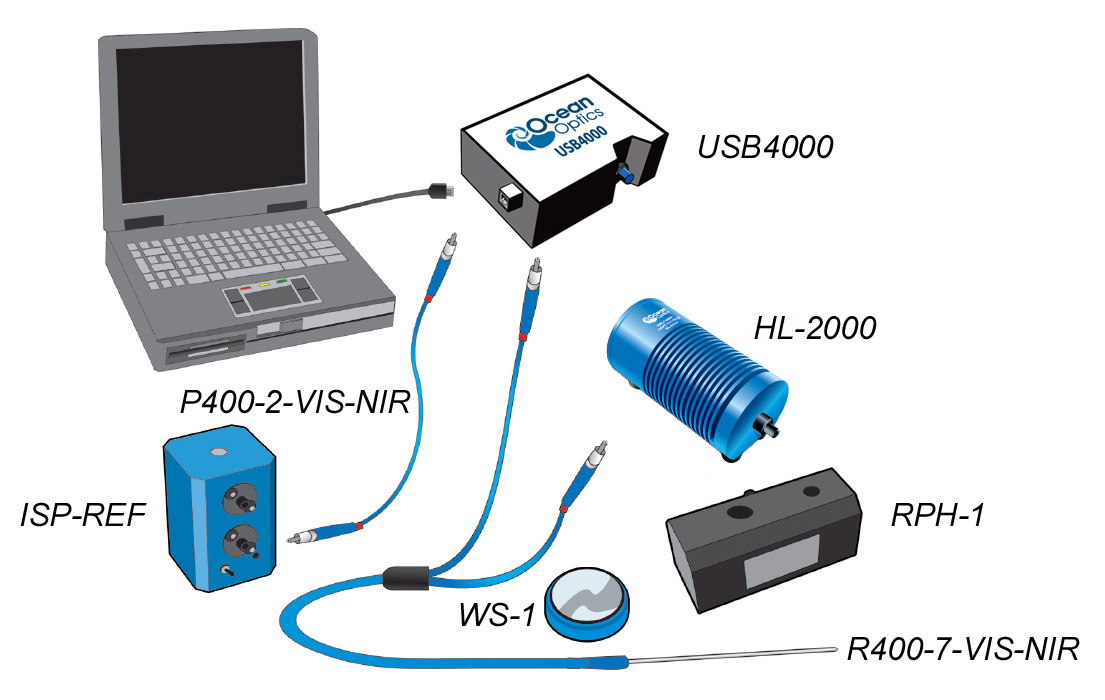

Components for Color Measurements
분광기 USB4000 Spectrometer
Diffuse Reflectance Standard WS-1
광원 Tungsten Halogen Light Source HL-2000
파이버 Reflection Probe R400-7-VIS-NIR
파이버 Premium Grade Optical Fiber P400-2-VIS-NIR
적분구 Illuminated Integrating Sphere ISP-REF
