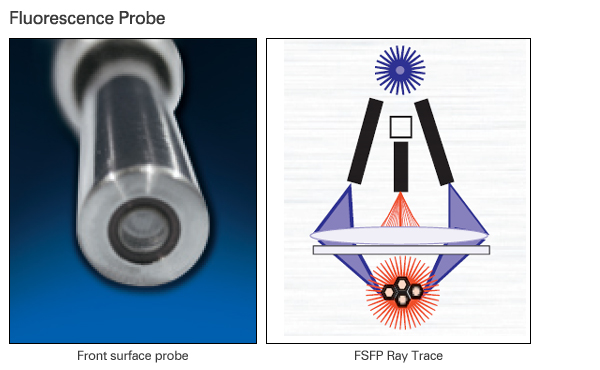

Front-surface Fluorescence Probe

제조사 Ocean Optics Inc
원산지 미국


Fluorescence Probe Applications
  • Cell viability
  • Presence/absence of analyte
  • Oil Water Seperators
  • API in pharmaceutical powders
  • Biofouling onset
  • Dye markers in fuels
  • Oil in Water
  • Surface fl uorescence
  • Fluorescence of liquids/solids/sluries
Specifications
Recommended fiber diameter 800 μm
Outer diameter 12 mm; 12.7 mm (0.5") also available
Probe length ~305 mm
Body materials 316 stainless steel (standard); Hastelloy C, Titanium and Monel also available
Crystal materials Sapphire
Seals Viton (standard); Chemraz, Kalrez also available
Pressure limit 7,000 psig
Fiber connections SMA 905
Temperature limit 300 ℃
Wavelength range UV-VIS
Housing material Anodized aluminum
