Custom Fiber
Custom fiber and Probe Assmeblie

제조사 Ocean Optics Inc
원산지 미국

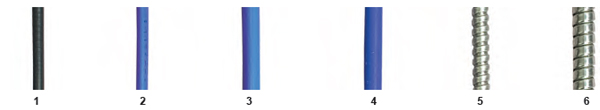

Item Code Description Temp. Limits Chemical Resistance Steam Sterilizable Mechanical Tolerance Length Limits
1. PVC Monocoil PVC covering SS monocoil only 70 ℃ Poor No Good 6 m
2. Zip tube Blue PVDF Best for budget-conscious applications;
standard in Laboratory-grade Assemblies
100 ℃ Poor No Good 50 m
3. Zip tube Blue PVDF Best for budget-conscious applications;
larger diameter than #2
100 ℃ Poor No Good 50 m
4. Silicone Monocil High-end jacketing; standard in Premiumgrade
Assemblies (sIlicone covering SS
monocoil)
250 ℃ Good Yes Good 20 m
5. Stainless-steel BX OEM applications only; optional polyolefin
heatshrink overcoat
250 ℃ Good Yes Poor 4 m

6. Stainless-steel fully interlocked BX

Excellent stainless steel jacketing
supports longer lengths of fiber; optional
polyolefin heatshrink overcoat
250 ℃ Good Yes Excellent 40 m

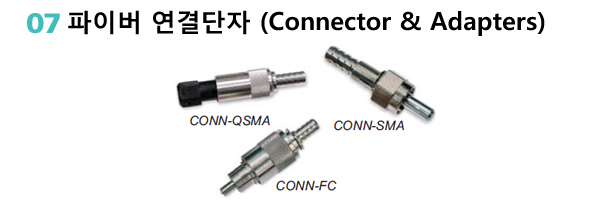

Item Description
CONN-ST Stainless-steel ST Connector
CONN-FC Stainless-steel FC Connector
CONN-QSMA Premium-grade SMA 905 Connector
CONN-SMA Laboratory-grade SMA 905 Connector
CONN-KSMA Keyed SMA 905 Connector
CONN-QSMA-O Premium-grade SMA Connector with O-ring
CONN-SMA-O Laboratory-grade SMA 905 Connector with O-ring

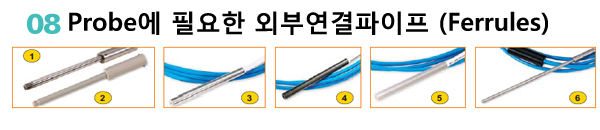

Item Description
1 1/4" diameter stainless-steel ferrule often used in solution transmission measurements
2 1/4" diameter PEEK ferrule used in harsh environments for solution transmission measurements
3 1/4" diameter stainless-steel ferrule used in reflection measurements
4 1/4" diameter Torlon ferrule with cap
5 1/4" diameter PEEK ferrule used in harsh environments
6 1/8" diameter stainless-steel ferrule
  1/16" diameter stainless-steel ferrule
  1/4" diameter stainless-steel ferrule with the tip angled to 30°
  Fiber-to-lens ferrule that comes with a collimating lens
