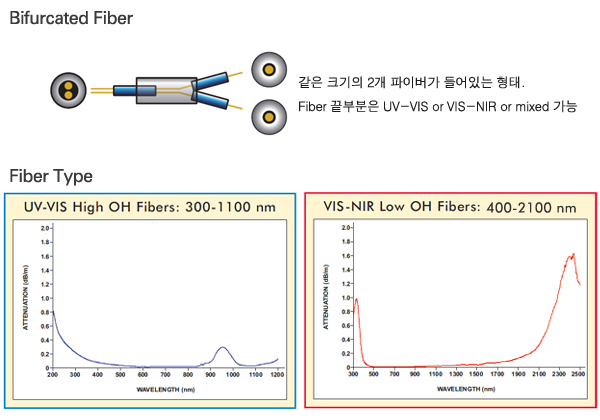

Bifurcated Optical Fiber
UV/VIS/NIR Optical Fiber Assemblies

제조사 Ocean Optics Inc
원산지 미국


Specifications
Fiber profile Step-index multimode (all diameter assemblies except for (8 μm) and
Step-index single mode (8 μm diameter assemblies)
Fiber core Pure silica core
Fiber cladding Fluorine-doped silica cladding
Connector SMA 905 Connectors
Numerical aperture Multimode: 0.22 ± 0.02 (yields acceptance angle of 24.8° in air);
Single mode: 0.14 ± 0.02 (yields acceptance angle of 14.94° in air)
Lab-grade Assemblies
Item code Wavelength Range Core Diameter Buffer / Coating Assembly Length LTBR* STBR**
BIF50-UV-VIS 300-1100 nm 50 μm ± 5 μm polyimide 2 meters 4 cm 2 cm
BIF50-VIS-NIR 400-2100 nm 50 μm ± 5 μm polyimide 2 meters 4 cm 2 cm
BIF200-UV-VIS 300-1100 nm 200 μm ± 4 μm polyimide 2 meters 8 cm 4 cm
BIF200-VIS-NIR 400-2100 nm 200 μm ± 4 μm polyimide 2 meters 8 cm 4 cm
BIF200-MIXED 300-1100 nm & 400-2100 nm 200 μm ± 4 μm polyimide 2 meters 8 cm 4 cm
BIF400-UV-VIS 300-1100 nm 400 μm ± 8 μm polyimide 2 meters 16 cm 8 cm
BIF400-VIS-NIR 400-2100 nm 400 μm ± 8 μm polyimide 2 meters 16 cm 8 cm
BIF400-MIXED 300-1100 nm & 400-2100 nm 400 μm ± 8 μm polyimide 2 meters 16 cm 8 cm
BIF600-UV-VIS 300-1100 nm 600 μm ± 10 μm polyimide 2 meters 24cm 12 cm
BIF600-VIS-NIR 400-2100 nm 600 μm ± 10 μm polyimide 2 meters 24 cm 12 cm
* Long Term Bend Radius, the bend radius allowed long term before damaging the fiber
** Short Term Bend Radius, the momentary bend radius allowed before damaging the fiber
Premium-grade Assemblies
Item code Wavelength Range Core Diameter Buffer / Coating Assembly Length LTBR* STBR**
QBIF50-UV-VIS 300-1100 nm 50 μm ± 5 μm polyimide 2 meters 4 cm 2 cm
QBIF200-UV-VIS 300-1100 nm 200 μm ± 4 μm polyimide 2 meters 8 cm 4 cm
QBIF200-VIS/BX400-2100 nm200 μm ± 4 μmpolyimide2 meters8 cm4 cm
QBIF200-VIS-NIR400-2100 nm200 μm ± 4 μmpolyimide2 meters8 cm4 cm
QBIF200-MIXED 300-1100 nm & 400-2100 nm200 μm ± 4 μmpolyimide2 meters8 cm4 cm
QBIF400-UV-VIS300-1100 nm400 μm ± 8 μmpolyimide2 meters16 cm8 cm
QBIF400-VIS-NIR400-2100 nm400 μm ± 8 μmpolyimide2 meters16 cm8 cm
QBIF400-MIXED 300-1100 nm & 400-2100 nm400 μm ± 8 μmpolyimide2 meters16 cm8 cm
QBIF600-UV-VIS300-1100 nm600 μm ± 10 μmpolyimide2 meters24cm12 cm
QBIF600-VIS/BX400-2100 nm600 μm ± 10 μmpolyimide2 meters24 cm12 cm
QBIF600-VIS-NIR400-2100 nm600 μm ± 10 μmpolyimide2 meters 24 cm12 cm
* Long Term Bend Radius, the bend radius allowed long term before damaging the fiber
** Short Term Bend Radius, the momentary bend radius allowed before damaging the fiber
