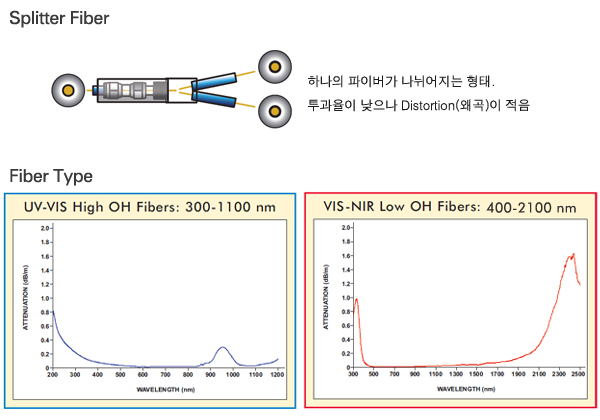

Splitter Optical Fiber
UV/VIS/NIR Optical Fiber Assemblies

제조사 Ocean Optics Inc
원산지 미국


Specifications
Jacketing Zip tube blue PVDF
Fiber profile Step-index multimode
Fiber core Pure silica core
Fiber cladding Fluorine-doped silica cladding
Connector SMA 905 Connectors
Breakout Midway of assembly at 1 meter
Numerical aperture 0.22 ± 0.02 (yields acceptance angle of 24.8° in air)
Item code Wavelength Range Core Diameter Buffer / Coating Assembly Length LTBR* STBR**
SPLIT200-UV-VIS 300-1100 nm 200 μm ± 4 μm polyimide 2 meters 8 cm 4 cm
SPLIT200-VIS-NIR 400-2100 nm 200 μm ± 4 μm polyimide 2 meters 8 cm 4 cm
SPLIT400-UV-VIS 300-1100 nm 400 μm ± 8 μm polyimide 2 meters 16 cm 8 cm
SPLIT400-VIS-NIR 400-2100 nm 400 μm ± 8 μm polyimide 2 meters 16 cm 8 cm
* Long Term Bend Radius, the bend radius allowed long term before damaging the fiber
** Short Term Bend Radius, the momentary bend radius allowed before damaging the fiber
