Transmission Dip Probes (산업용)
Industrial Transmission Dip Probes

제조사 Ocean Optics Inc
원산지 미국


Item Code Description
TI300-UV-VIS Transmission Dip Probe with 300 µm diameter UV/SR fiber type (200-1100 nm) in 12.7 mm outer diameter 303 stainless steel ferrule
TI300-VIS-NIR Transmission Dip Probe with 300 µm diameter VIS-NIR fiber type (400-2500 nm) in 12.7 mm outer diameter 303 stainless steel ferrule

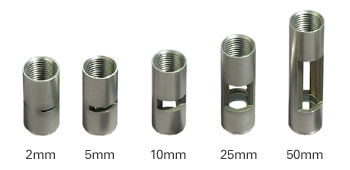

RT-TI-2MM 303 stainless steel 2 mm pathlength screw-on sampling tip for TI300
RT-TI-5MM 303 stainless steel 5 mm pathlength screw-on sampling tip for TI300
RT-TI-10MM 303 stainless steel 10 mm pathlength screw-on sampling tip for TI300
RT-TI-25MM 303 stainless steel 25 mm pathlength screw-on sampling tip for TI300
RT-TI-50MM 303 stainless steel 50 mm pathlength screw-on sampling tip for TI300

Specifications

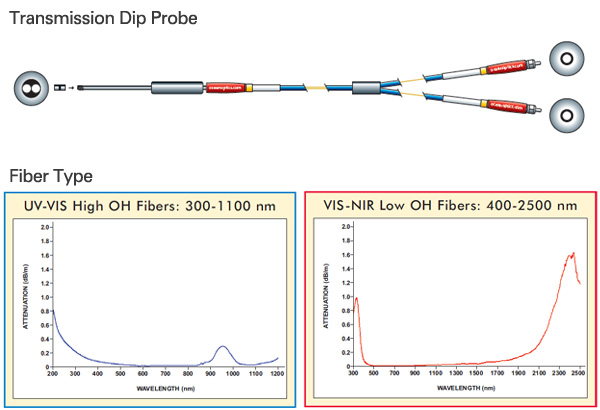

Fiber type TI300-UV-VIS -- 300 μm diameter: UV/SR fiber type (200-1100 nm)
TI300-VIS-NIR -- 300 μm diameter VIS-NIR: fiber type (400-2100 nm)
Sampling tip body 303 stainless steel
Sampling tip optics Quartz back-coated mirror and quartz lens
Sampling tip O-ring Parker perfluoroelastomer (Parofluor ULTRA) O-ring seal
Length Fiber -- 2 meters
Ferrule -- 12.7 cm without tip
Tips -- 2.6 cm to 4.99 cm, depending on tip
Breakout distance 1 meter from the end of the probe
Pressure limit 250 psi
Probe jacketing Fully interlocked stainless-steel jacketing over Teflon tubing; total 6.8 mm outer diameter
Probe ferrule 12.7 mm outer diameter 303 stainless steel
Connector SMA 905
Temperature limit 300℃
