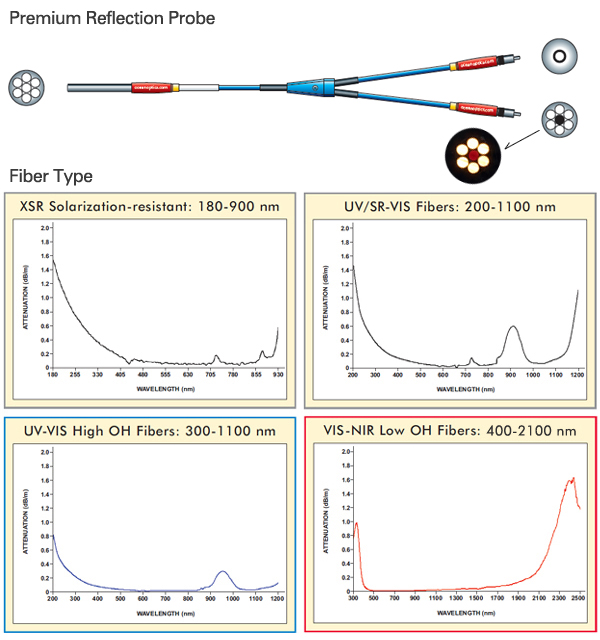

Reflection Probes
Standard/ Solarization-resistant

제조사 Ocean Optics Inc
원산지 미국


Item Code Wavelength Range Core Diameter Fiber Jacketing Probe Ferrule LTBR* STBR**
QR200-7-UV-VIS 300-1100 nm 200 μm ± 4 μm silicone monocoil 6.35 mm OD 8 cm 4 cm
QR200-7-VIS-NIR 400-2100 nm 200 μm ± 4 μm silicone monocoil 6.35 mm OD 8 cm 4 cm
QR230-7-XSR/BX 180-900 nm 230 μm aluminum coating, stainless-steel BX 6.35 mm OD - -
QR400-7-SR 200-1100 nm 400 μm ± 8 μm silicone monocoil 6.35 mm OD 16 cm 8 cm
QR400-7-SR/BX 200-1100 nm 400 μm ± 8 μm stainless-steel BX 6.35 mm OD 16 cm 8 cm
QR400-7-UV/BX 300-1100 nm 400 μm ± 8 μm stainless-steel BX 6.35 mm OD 16 cm 8 cm
QR400-7-UV-VIS 300-1100 nm 400 μm ± 8 μm silicone monocoil 6.35 mm OD 16 cm 8 cm
QR400-7-VIS/BX 400-2100 nm 400 μm ± 8 μm stainless-steel BX 6.35 mm OD 16 cm 8 cm
QR400-7-VIS-NIR 400-2100 nm 400 μm ± 8 μm silicone monocoil 6.35 mm OD 16 cm 8 cm
QR450-7-XSR 180-900 nm 450 μm aluminum coating, stainless-steel BX 6.35 mm OD - -
QR600-7-SR-125F 200-1100 nm 600 μm ± 10 μm silicone monocoil 3.18 mm OD 24 cm 12 cm
QR600-7-UV-125F 300-1100 nm 600 μm ± 10 μm silicone monocoil 3.18 mm OD 24 cm 12 cm
QR600-7-VIS-125F 400-2100 nm 600 μm ± 10 μm silicone monocoil 3.18 mm OD 24 cm 12 cm
R200-7-UV-VIS 300-1100 nm 200 μm ± 4 μm zip tube blue PVDF 6.35 mm OD 8 cm 4 cm
R200-7-VIS-NIR 400-2100 nm 200 μm ± 4 μm zip tube blue PVDF 6.35 mm OD 8 cm 4 cm
R400-7-SR 200-1100 nm 400 μm ± 8 μm zip tube blue PVDF 6.35 mm OD 16 cm 8 cm
R400-7-UV-VIS 300-1100 nm 400 μm ± 8 μm zip tube blue PVDF 6.35 mm OD 16 cm 8 cm
R400-7-VIS-NIR400-2100 nm400 μm ± 8 μmzip tube blue PVDF 6.35 mm OD16 cm 8 cm
R200-7-SR-125F200-1100 nm600 μm ± 10 μmzip tube blue PVDF3.18 mm OD24 cm 12 cm
R200-7-UV-125F300-1100 nm600 μm ± 10 μmzip tube blue PVDF3.18 mm OD24 cm 12 cm
R200-7-VIS-125F400-2100 nm600 μm ± 10 μmzip tube blue PVDF3.18 mm OD24 cm 12 cm
RP200-7-UV-VIS300-1100 nm200 μm ± 4 μmzip tube blue PVDF PEEK ferrule, 6.35 mm OD 8 cm 4 cm
