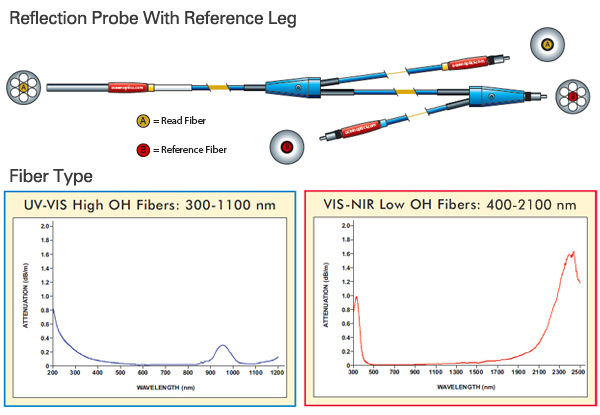

Reflection Probes Reference Leg

제조사 Ocean Optics Inc
원산지 미국


Specifications
Fiber type Step-index multimode
Fiber core Pure silica core
Fiber cladding Fluorine-doped silica cladding
Fiber buffer/coating Polyimide coating except where noted
Operating temperature range -20 °C to 80 °C
Numerical aperture 0.22 ± 0.02 (yields an acceptance angle of 24.8° in air)

Probe ferrule

Stainless steel
Probe connector(s) Premium-grade SMA 905 Connectors for QR-series probes,
Laboratory-grade SMA 905 Connectors for R-series probes
Breakout Midway of assembly at 1 meter
Total probe length 2 meters long for fiber assembly, 76.2 mm long for probe ferrule = 2.076 meters total length; custom lengths available
Item Code Wavelength Range Core Diameter Fiber Jacketing Probe Ferrule LTBR* STBR**
QR200-REF-UV-VIS 300-1100 nm 200 μm ± 4 μm silicone monocoil 6.35 mm OD 8 cm 4 cm
QR200-REF-VIS-NIR 400-2100 nm 200 μm ± 4 μm silicone monocoil 6.35 mm OD 8 cm 4 cm
R200-REF-UV-VIS 300-1100 nm 200 μm ± 4 μm zip tube blue PVDF 6.35 mm OD 8 cm 4 cm
R200-REF-VIS-NIR 400-2100 nm 200 μm ± 4 μm zip tube blue PVDF 6.35 mm OD 8 cm 4 cm
* Long Term Bend Radius, the bend radius allowed long term before damaging the fiber
** Short Term Bend Radius, the momentary bend radius allowed before damaging the fiber
