IDRaman Micro
Raman Microscope

사이즈 36 x 10 x 28 cm
무   게 5.4 kg
제조사 Ocean Optics Inc
원산지 미국


  • Optimized for Raman

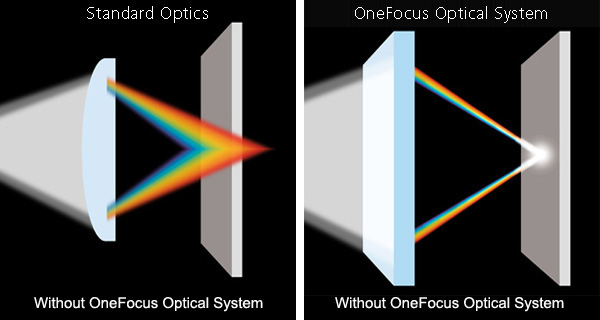

  • OneFocus Advantage
  • Small. Powerful. Versatile.

Specifications
Laser wavelengths 785 nm and 532 nm
Laser power 785 nm: 100 mW (≒80 mW at sample)
532 nm: 50 mW (≒40 mW at sample)
Range and resolution 785 nm and 532 nm standard versions (200-3200 cm-1, 8 cm-1 resolution)
785 nm high-resolution version (200-2000 cm-1, 4 cm-1 resolution)
Detector 2048 element back-thinned array, NIR enhanced, TEC cooling to -10 ▲C
Sampling Microscope
Vial and cuvette
Objectives and spot size 40X objective: >2 micron spot size [standard]
00X objective: >1 micron spot size [optional]
Image 3 Megapixel; epi-illumination
Size 14 x 4 x 11 in., 36 x 10 x 28 cm
Weight 5.4 kg (12 lb.)
