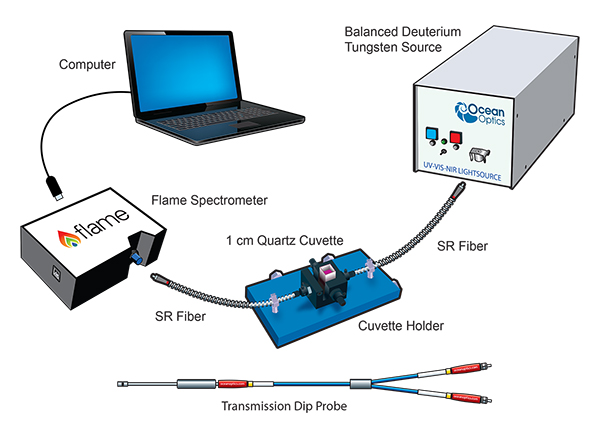

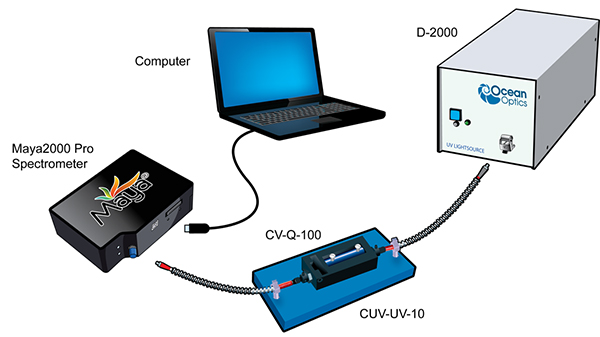

This high-resolution spectrometer is configured for UV absorbance in the sample setup. We use Grating #H7 set for 200-300 nm, with a 5 um slit as entrance aperture and a detector collection lens for increased sensitivity.
This sturdy cuvette holder accepts 1 cm pathlength cuvettes
Cylindrical quartz cell with Teflon stopper; has volume of 28.2 mL
Two 450 um extreme solarization-resistant optical fibers will transmit and receive light in this setup
Absorbance Standards (optional)
NIST-traceable photometric absorbance standards for 200-450 nm (STAN-ABS-UV) and 400-900 nm (STAN-ABS-VIS) ranges
